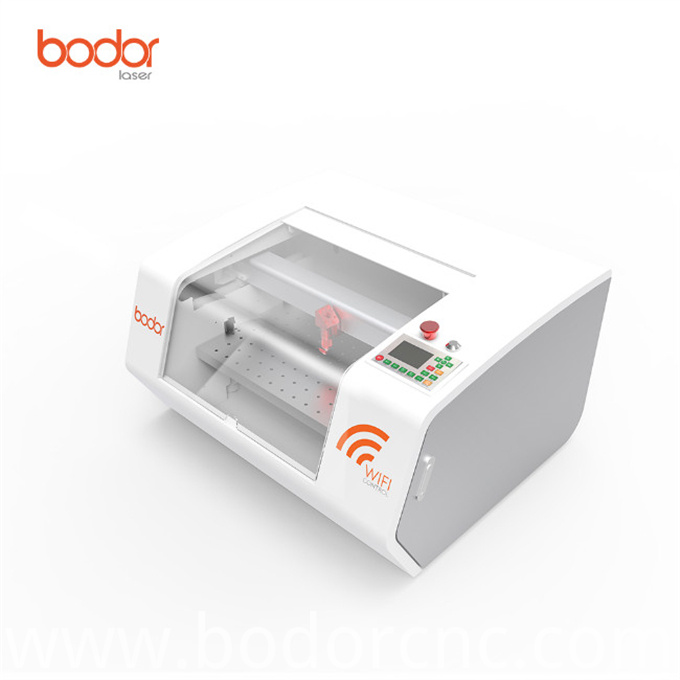

Accurate to position laser engraving machine

Share to:

Basic Info

Model No.: BCL-MU

Product Description

Brief Introduction

With a reasonable size, BCL0503MU BCL0605MU small laser engraving is really good for users who have very little space to put the machine.Though the size is small, its ability for cutting and engraving is also as good as the big machines. It`s especially good for customers who need to make customized products.

Accurate to position Laser Engraving Machine ,using under non-work state, open left door to clean the interior space. 3 in 1 closed crossbeam (guide rail, belts, tank chain integrated in the beam). Mini Laser Engraving And Cutting Machine can cut many materials, such as acrylic, paper, leather, shell, coconut, shell, wood planks, bamboo ware, double color board, ABS board, etc.


Features
Smart size Easy to put and work.
3 in 1 closed beam simple and generous.
150mm stainless steel up and down table with ball screw,Higher accuracy.
"Big eye" design,Transparent acrylic window,easy to view.
Turn off the power to continue engraving. Open cover with protection.
Stainless steel hollow table,Eject smoke well,never rust.
Up-down work table,use ball screw transmission system.
High-efficiency laser tube,excellent laser beam long life time 4000-10000hours.
Professional control system.

Technical Parameter
Model BCL0503MU BCL0605MU
Working Area 500*300mm 600*500mm
Laser Power 40W 40W/80W
Laser Type CO2 Sealed Laser Tube, 10.6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-40000mm/min
Laser Output Control (0-100% Set by Software )
Min. Engraving Size Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision 4000DPI
Locating Precision ≤+0.01mm
Controlling Software DSP Control System
Graphic Format Supported DST PLT BMP DXF DWG AI LAS,etc
Compatible Software TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc
Color Separation Yes
Drive System High-precision 3-phase Stepper Motor
Auxiliary Equipments Exhaust Fan and Air Exhaust Pipe
Power Supply AC110V/220V+10%,50HZ/60HZ
Working Environment Temperature:0-45℃,Humidity 5-95%(No Condensate Water)

Optional Spare Parts Honeycomb Worktable, Rotary Device,Auto-focus Device

Accurate to position laser engraving machine
