Basic Info

    Model No.: Bodor E3015T

Product Description

Brief Introduction

E3015T E4020T fiber Laser Cutting Machine, Cut Metal Shee, cut Stainless Steel, Carbon Steel, Alloy Steel, Silicon Steel, Spring Steel, Aluminum, Galvanized Sheet, Galvanized Sheet Pickling Board, Copper, Titanium and other Metal Plate.

1.Stable and reliable light path system and control system
2. Imported original fiber laser generator with great and stable performance to have lifespan over 100,000 hours
3. High cutting quality and efficiency with cutting speed up to 25m/min
4. Imported high performance reducer,gear and rack


Features

A cast iron bed lasts forever.
Gear drive,10 s exchange, No.1 in the industry.
Auto focus laser head.
Mango wireless remote control handle.
Auxiliary gas low pressure alarm function.
WIFI remote intelligent assistance.
Integral steel mold pressure casting, light, flexible and efficient.
BodorPro 2.0 Automatic tracing-edge, dual-use for plate and tube.
The heavy bed makes the equipment more stable in working.
Auxiliary feeding mechanism.
Intelligent travel protection.
Intelligent alarm system.


Technical Parameter

Model: E3015T E4020T
Working Area: 3000*1500mm 4000*2000mm
Laser Output Power: 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter: Φ20-Φ200mm
Effective Square Tube Cutting Diameter: □20*20-□140*140mm
Rectangular tube Min. Edge Length: ≥20mm
Max. Outer Circle Diameter : ≤200mm
Effective Pipe Cutting Length: 3m/6m
X/Y/U-axis positioning accuracy: 0.03mm
X/Y/U-axis repositioning accuracy: 0.02mm
X/Y-axis Max. linkage speed: 100m/min

U-axis max.moving speed: 30m/min

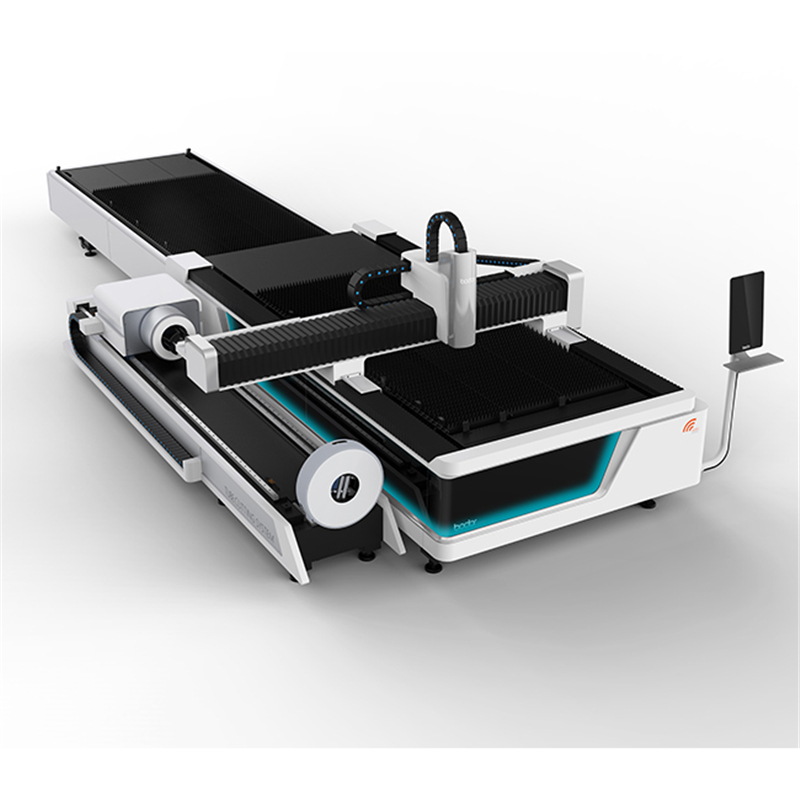

Fiber laser cutting machine with two exchange platform

Looking for ideal Tube Laser Cutting Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Sheet metal cutting are quality guaranteed. We are China Origin Factory of Metal Tube Laser Cutting Machine. If you have any question, please feel free to contact us.
