Jinan Bodor CNC Machine Co., Ltd.

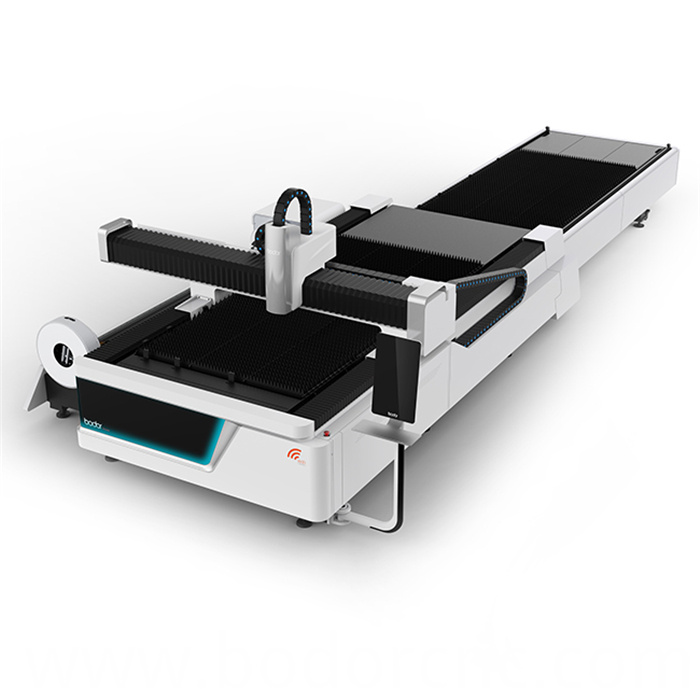

Fiber laser stainless steel cnc cutting machine
Fiber laser stainless steel cnc cutting machine
Fiber laser stainless steel cnc cutting machine
Fiber laser stainless steel cnc cutting machine
Fiber laser stainless steel cnc cutting machine

Fiber laser stainless steel cnc cutting machine

Add to Basket

Basic Info

    Model No.: E-T series

Product Description

Brief Introduction

High performance.fiber transmission can make sure the same quality cutting effect in every point of the material.
High efficiency,fast cutting speed.photoelectric conversion rate about 35%.
Low gas consumption.it has the cutting technology specially for steel board and produce no gas when cutting .
Low power consumption .environment -friendly and energy -saving,reduce 20%-30% power compard with co2 cutting machine.
Maintenance-free ,fiber transmision without reflection lens,can save time in light path adjustment .
fiber exerts its features better in thin metal sheet cutting.


Fiber laser supplier stainless steel cnc cutting machine has cast aluminum crossbeam,after artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Fiber laser supplier stainless steel cnc cutting machine is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.


Features

A cast iron bed lasts forever.
Gear drive,10 s exchange, No.1 in the industry.
Auto focus laser head.
Mango wireless remote control handle.
Auxiliary gas low pressure alarm function.
WIFI remote intelligent assistance.
Integral steel mold pressure casting, light, flexible and efficient.
BodorPro 2.0 Automatic tracing-edge, dual-use for plate and tube.
The heavy bed makes the equipment more stable in working.
Auxiliary feeding mechanism.
Intelligent travel protection.
Intelligent alarm system.


Technical Parameter

Model: E3015T E4020T
Working Area: 3000*1500mm 4000*2000mm
Laser Output Power: 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter: Φ20-Φ200mm
Effective Square Tube Cutting Diameter: □20*20-□140*140mm
Rectangular tube Min. Edge Length: ≥20mm
Max. Outer Circle Diameter: ≤200mm
Effective Pipe Cutting Length: 3m/6m
X/Y/U-axis positioning accuracy: 0.03mm
X/Y/U-axis repositioning accuracy: 0.02mm
X/Y-axis Max. linkage speed: 100m/min

U-axis max.moving speed: 30m/min

Fiber laser stainless steel cnc cutting machine

Product Categories : Laser Cutting Machine > Metal Sheet And Tube Cutting Machines
