Auto focus high power laser cutting machine

Share to:

Basic Info

Model No.: P-T series

Product Description

Auto focus high power Laser Cutting Machine works fast and free your hand. Focal length is controlled by operating system. We don`t need to do manual regulation, which effectively avoids errors or faults caused by manual operation. Bodor Lightning technology makes perforation time short, saving cutting gas and electricity, saving cost. Auto focus high power laser cutting machine is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.

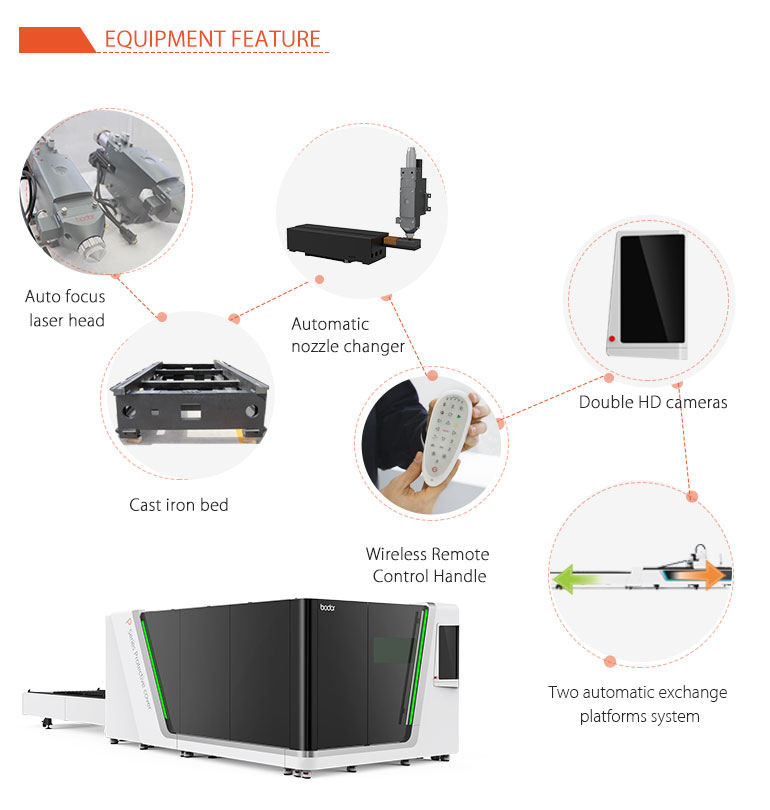

Features
A cast iron bed lasts forever.
The machine accuracy could maintain for a long time, and no deformation in a life cycle.
Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
Integral steel mold pressure casting, light, flexible and efficient.
Full closed protection improves using security.
Two automatic exchange platforms system
Independent R&D operating system, perfectly combines high efficiency and simplicity with inclusiveness.
Intelligent travel protection.
Auxiliary gas low pressure alarm function.
WIFI remote intelligent assistance.
A new generation of safety following module.
Automatic lubrication system.
Technical Parameter
Model P3015T
Working Area 3000mm*1500mm
Laser Output Power 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter Φ20- Φ200mm
Effective Square Tube Cutting Diameter □20*20-□140*140mm
Rectangular tube Min. Edge Length ≥20mm
Max. Outer Circle Diameter ≤200mm
Effective Pipe Cutting Length 3m/6m
X/Y/U-axis positioning accuracy 0.03mm
X/Y/U-axis repositioning accuracy 0.02mm
X/Y-axis Max. linkage speed 100m/min

U-axis max.moving speed 30m/min

Auto focus high power laser cutting machine
