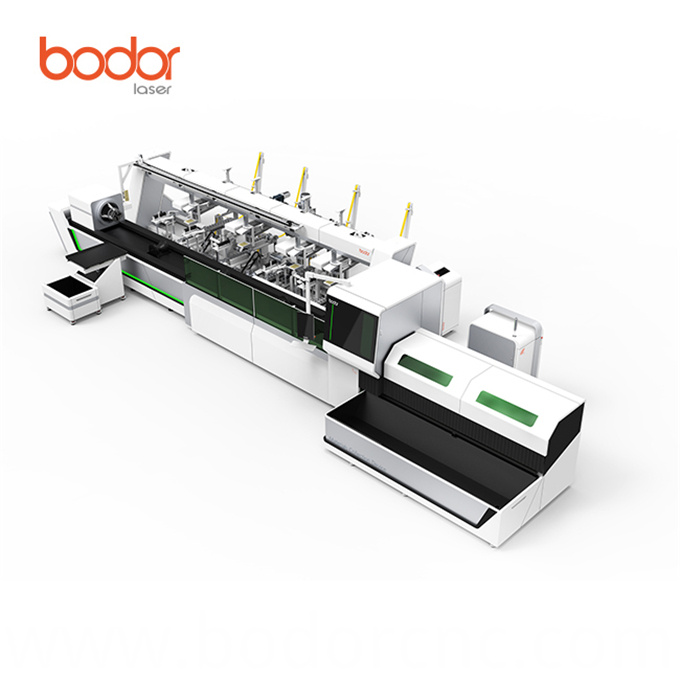

10mm metal tube laser cutting machine
10mm metal tube laser cutting machine
10mm metal tube laser cutting machine
10mm metal tube laser cutting machine
10mm metal tube laser cutting machine

10mm metal tube laser cutting machine

Add to Basket

Basic Info

    Model No.: T230A series

Product Description

Key Specifications/Special Features:

1. Taiwan YYC gear and rack driving
2. Swiss ray tools laser cutting head
3. Front-rear all-electric chuck
4. French Schneider servo motor
5. Japan NSK bearings
6. French Schneider electron component
7. Japan SMC pneumatic component
8. Dual independent T water chiller
9. Guide rail self-lubrication system
10. Cypcut control system
11. Wi-Fi control for remote checking
12. Fully-automatic feeding/collection

10mm Metal Tube Laser Cutting Machine has full automatic loading device,after the whole bundle pipes were put on the feeding device, these pipes can be intelligently divided, loaded and connected seamlessly with the pipe cutter to ensure that only one pipe is transported to the delivery arm at a time. 10mm metal tube Laser Cutting Machine is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.Cutting machine for metal tube meets the parts processing requirements of most industries, working accuracy is stable.


Features

The diameter is increased by 30%.
The weight is increased by 100%.
Suitable for various tubes cutting.
Touch control.
Fully automatic electric chuck.
Full automatic loading and unloading device.
BodorPro searching,Precision upgrading.


Technical Parameter

Model: T230A
Effective Pipe Cutting Length: 2000mm-6500mm
Max. Output Power: 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter: Φ20-230mm
Effective Square Tube Cutting Diameter : □20*20mm-□160*160mm
Rectangular tube Edge Length: 20-170mm
Max. Outer Circle Diameter: ≤230mm
X/Y-axis positioning accuracy: 0.05mm
X/Y-axis repositioning accuracy; 0.03mm
X axis maximum speed : 95m/min

Y axis maximum speed :70m/min

10mm metal tube laser cutting machine
