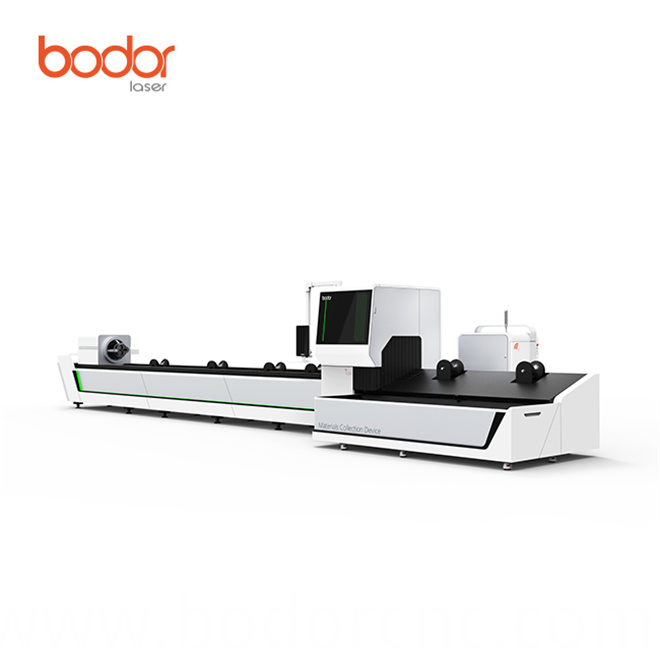

Pipe laser cutting machine

Share to:

Basic Info

Model No.: T230 series

Product Description

Fully automatic electric chuck
Automatic electric chuck, claw DC motor drive, clamping motor current is sensitive, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

BodorPro-T 2.0 Four - sided searching,
Precision upgrading
Using a new graphic rendering and presentation, pipe parts can realize dual display as flat and three-dimensional. Plane retouching is simple and quick, three-dimensional can synchronous display. The new four-sided edges searching, optimized edges searching mode and algorithm bring us higher cutting accuracy and accuracy stability.

Pipe Laser Cutting Machine can be equipped with Full automatic loading and unloading device. About unloading: Finished material is automatically unloaded to the parts silo, double rollers auxiliary support long parts; materials can be automatic prepared during processing time, shorten the feeding time. Automatic unloading, parts and scraps are automatically separated, reducing sorting, saving labor, improving machine production efficiency. Pipe laser cutting machine is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.


Features

The diameter is increased by 30%.
The weight is increased by 100%.
Suitable for various tubes cutting.
Touch control.
Fully automatic electric chuck.
Full automatic loading and unloading device.
BodorPro searching,Precision upgrading.


Technical Parameter

Model: T230
Effective Pipe Cutting Length: 6500mm
Max. Output Power: 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter: Φ20-230mm
Effective Square Tube Cutting Diameter: 20*20-160*160mm
Rectangular tube Edge Length: 20-170mm
Rectangular tube Max. Outer Circle Diameter: ≤230mm
X/Y-axis positioning accuracy: 0.05mm
X/Y-axis repositioning accuracy: 0.03mm
X axis maximum speed: 95m/min

Y axis maximum speed: 70m/min

Pipe laser cutting machine
