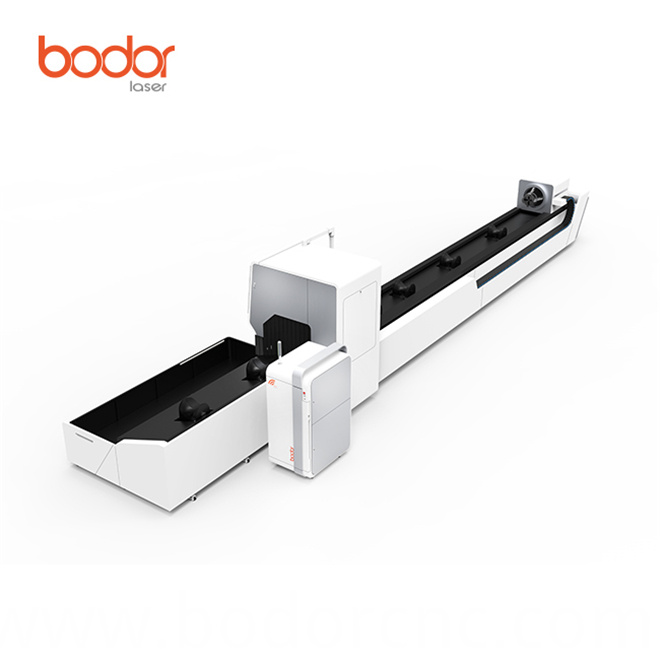

Metal tube fiber laser cutting machine

Share to:

Basic Info

Model No.: T230 series

Product Description

Brief Introduction

In order to cater to the different processing demands for the stainless steel manufacturing industry
Bodor laser CNC machine company limited is specialized at producing all kinds of Fiber Laser Cutting Machine for metal sheet and metal tubes more than 15 years
What is more for Bodor laser machine, we have three main predominant advantages:
1. Three-year guarantee for the whole machine (the only one company can do this)
2. Wi-Fi control system, realizing remote failure detection function, greatly removing your concerns
3. Switzerland design, we cooperate with Swiss center, providing the most favorable designs for the customers all over the world


Metal Tube Fiber Laser Cutting Machine use Fully automatic electric chuck. Automatic electric chuck, claw DC motor drive, clamping motor current is sensitive, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable.

Tube Laser Cutting Machine is apply to alloy metal materials, aluminum, brass ,cutting carbon and steel.


Features

The diameter is increased by 30%.
The weight is increased by 100%.
Suitable for various tubes cutting.
Touch control.
Fully automatic electric chuck.
Full automatic loading and unloading device.
BodorPro searching,Precision upgrading.


Technical Parameter

Model: T230
Effective Pipe Cutting Length: 6500mm
Max. Output Power: 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter: Φ20-230mm
Effective Square Tube Cutting Diameter: 20*20-160*160mm
Rectangular tube Edge Length: 20-170mm
Rectangular tube Max. Outer Circle Diameter: ≤230mm
X/Y-axis positioning accuracy: 0.05mm
X/Y-axis repositioning accuracy: 0.03mm
X axis maximum speed : 95m/min

Y axis maximum speed: 70m/min
