Jinan Bodor CNC Machine Co., Ltd.

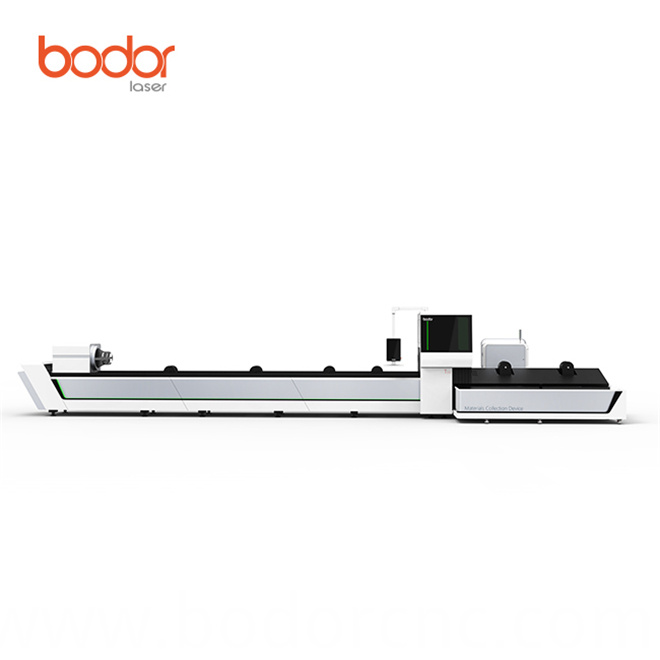

Metal tube laser cutting machine

Min. Order:
1
Share:
  • Product Description
Overview
Product Attributes

Model No.T230 series

Brief Introduction
Metal tube Laser Cutting Machine can hold tube with bigger diameter. The maximum cutting diameter of T series is 30% longer than the mainstream products in the market; the maximum cutting weight is 100% heavier than the mainstream products in the market. Metal tube laser cutting machine is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.
Features
The diameter is increased by 30%.
The weight is increased by 100%.
Suitable for various tubes cutting.
Touch control.
Fully automatic electric chuck.
Full automatic loading and unloading device.
BodorPro searching,Precision upgrading.
Technical Parameter
Model T230
Effective Pipe Cutting Length 6500mm
Max. Output Power 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter Φ20-230mm
Effective Square Tube Cutting Diameter 20*20-160*160mm
Rectangular tube Edge Length 20-170mm
Rectangular tube Max. Outer Circle Diameter ≤230mm
X/Y-axis positioning accuracy 0.05mm
X/Y-axis repositioning accuracy 0.03mm
X axis maximum speed 95m/min

Y axis maximum speed 70m/min

Metal tube laser cutting machine
