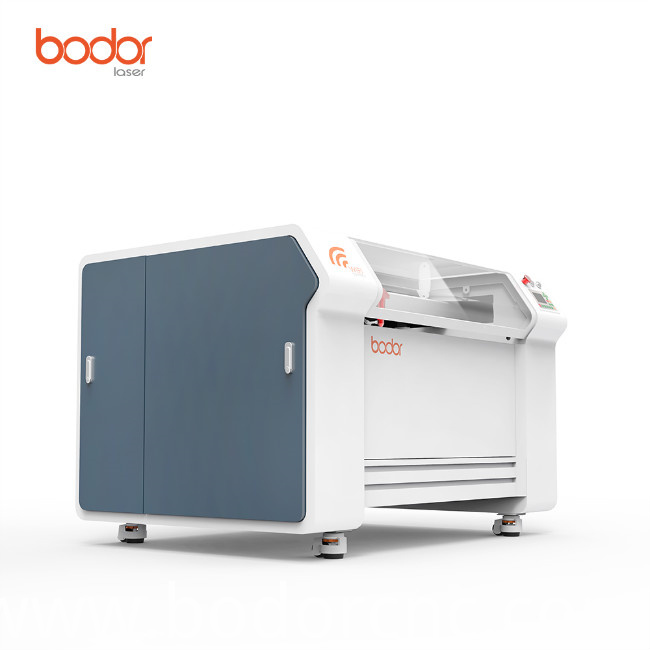

Leather small craft CO2 mini laser cutting machine

Share to:

Basic Info

Model No.: BCL-X

Product Description

Brief Introduction

BCL1006X BCL1309X laser cutting engraving machine can engrave on all kinds of the nonmetalic craft works,gifts,bamboo and wooden products,the structure is more compact and reasonable ,electric performance is steady,with the fast engraving speed and the higher precision also can engrave beautiful portraits/pictures on all kinds of nonmetal materials surface. can also engrave diversified marks and brands.This is a machine with good performance and low price.

100w leather small craft CO2 Mini Laser Cutting Machine equipped with manual modulation focused laser head, responsive and accurate, the machine can adjust the focus position according to engraving and cutting alternation and the material characteristics and thickness of the plank, to ensure sculpture quality.100w leather small craft co2 mini Laser Cutting Machine is suitable for cutting and engraving acrylic, wood planks, bamboo ware, double color board, paper, leather, shell,coconut,shell,ABS board,etc.


Features

Big eye design.
Red cross position system which is accurate to position.
Wife control.
RECI laser tube which is the leading brand in China.
Beautiful appearance design.
Open cover protection for operator.


Technical Parameter

Model BCL1006X BCL1309X
Working Area 1000*600mm 1300*900mm
Laser Power 80W/100w/120w/150w
Laser Type CO2 Sealed Laser Tube ,10.6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-40000mm/min
Laser Output Control 0-100% set by software
Min. Engraving Size Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision 4000DPI
Locating Accuracy ≤+0.01mm
Controlling Software DSP Control System
Graphic Format Supported DST PLT BMP DXF DWG AI LAS,etc
Compatible Software CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Color Separation Yes
Drive System High-precision 3-phase Stepper Motor
Auxiliary Equipments Exhaust Fan and Air Exhaust Pipe
Power Supply AC110V/220V+10%,50HZ/60HZ

Working Environment Temperature:0-45C,Humidity 5-95%(No Condensate Water)

100w leather small craft co2 mini laser cutting machine
