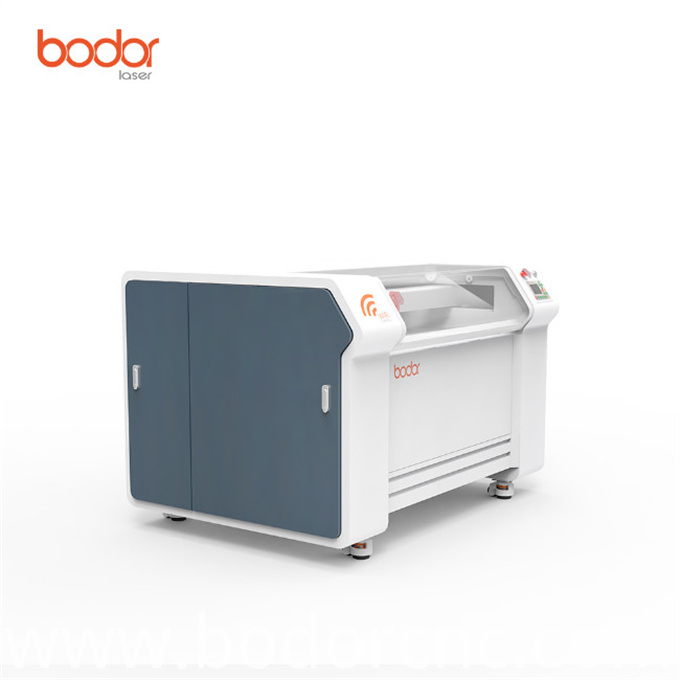

Best manufactures metal laser engraving machine

Share to:

Basic Info

Model No.: BCL-X

Product Description

Brief Introduction

Laser Machinery is a multi-function laser process device which combines the functions of drawing, engraving and cutting. Good quality laser tube, long lifetime, more powerful, good quality laser power supply. Red Light position,making locating more convenient and precise. It adopts automatic stainless steel crawler platform & large scope, so it can meet the demand of large-format cutting, carving for clothing and other fields. This Laser Engraving Machine not only have all the large scale engraving machines function, but also have mechanical design, capability, and working area perfect improved.

Best manufactures metal laser engraving machine equipped with manual modulation focused laser head, responsive and accurate, the machine can adjust the focus position according to engraving and cutting alternation and the material characteristics and thickness of the plank, to ensure sculpture quality.Best manufactures metal laser engraving machine is suitable for cutting and engraving acrylic, wood planks, bamboo ware, double color board, paper, leather, shell,coconut,shell,ABS board,etc.


Big eye design.
Red cross position system which is accurate to position.
Wife control.
RECI laser tube which is the leading brand in China.
Beautiful appearance design.
Open cover protection for operator.

Technical Parameter

Model: BCL1006X BCL1309X
Working Area: 1000*600mm 1300*900mm
Laser Power: 80W/100w/120w/150w
Laser Type: CO2 Sealed Laser Tube ,10.6μm
Cooling Type: Water Cooling
Engraving Speed: 0-60000mm/min
Cutting Speed: 0-40000mm/min
Laser Output Control: 0-100% set by software
Min. Engraving Size Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision: 4000DPI
Locating Accuracy: ≤+0.01mm
Controlling Software: DSP Control System
Graphic Format Supported: DST PLT BMP DXF DWG AI LAS,etc
Color Separation: Yes
Drive System : High-precision 3-phase Stepper Motor
Auxiliary Equipments: Exhaust Fan and Air Exhaust Pipe
Power Supply: AC110V/220V+10%,50HZ/60HZ

Working Environment Temperature: 0-45C,Humidity 5-95%(No Condensate Water)

Best manufactures metal laser engraving machine
